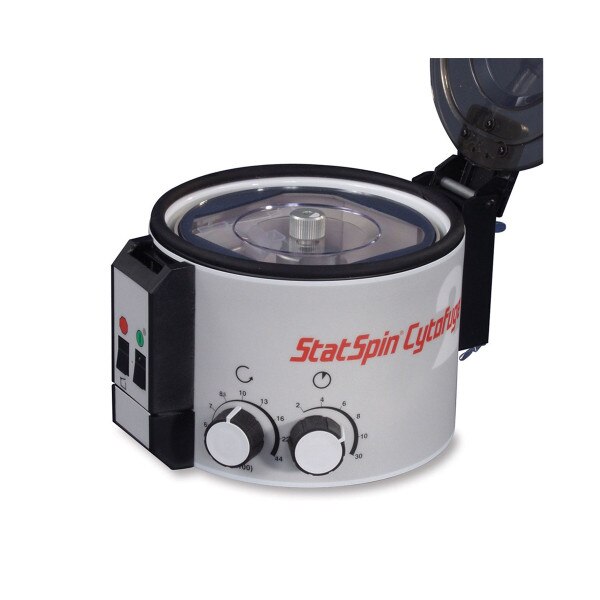

StatSpin CytoFuge 2 Cytocentrifuge, 4-Place Rotor w/ Transparent Lid

The StatSpin Cytofuge 2 enables consistent, high quality slide prep. With easy-to-use controls and snap-seal filter concentrators for simplified operation, samples are prepared quickly, quietly, and conveniently on the bench or in a safety cabinet. The system handles samples from routine body fluid preps to research methods involving application of multiple cell concentrations or controls on the same slide. A broad range of selectable speed and run times enables precise replication of most procedures developed on other cytocentrifuge equipment.

This low-cost personal cytocentrifuge reliably produces consistent results, which makes it easy to scan monolayer cell presentations of excellent morphologic detail. Its small footprint allows it to fit in a small area of safety hood. The covered rotor and chamber gaskets reduce exposure to biohazards. There is optimal operator control over acceleration and braking. The covered interlock system prevents operation when the cover is open. Its patented rotor design eliminates trunnion carries or bulky clamps. The speed and cycle time controls accommodate a range of applications with repeatable accuracy.

Disposable Filter Concentrators:
You save time and improve your results by eliminating the need to clean and sterilize reusable sample chambers. The device includes a uniquely hinged backing plate and an integral filter card, which effectively absorbs fluid at a controlled rate during the spin cycle. Cells are gently concentrated in a monolayer onto a 7mm diameter area on the slide with minimal cell loss to the filter.

Reusable & Disposable Cell Concentrators:
Available in 1 and 3-well formats, these silicone gasket-sealed devices are made of transparent plastic, which are competitively priced for disposable use.

Features:
- Compact, quiet, safe
- Enables consistent, high quality slide prep
- Simple, standardized operating procedure
- Snap-seal filter concentrators
- 1-year warranty

Applications:
• Pleural fluids
• Fine needle
• Sputum aspirates
• Urine
• Bronchial washings
• Synovial fluids
• Peritoneal fluids
• Pericardial fluids
• Cerebrospinal fluids

Specifications:
Safety features: Cover interlock system, leak resistant rotor with transparent lid, low voltage drive system (24V), designed to meet requirements of IEC-1010-2-020
Rotor capacity: 1 to 4 slides
Speeds and forces:
600 rpm/20 xg 1300 rpm/93 xg
700 rpm/27 xg 1600 rpm/140 xg
850 rpm/40 xg 2200 rpm/265 xg
1000 rpm/55 xg 4400 rpm/1060 xg
Operating times: 2, 4, 6, 8, 10, and 30 minutes
Power requirements: 100 to 240 VAC, ± 10%, 50 or 60 Hz
Dimensions (H x W x D): 5.3 x 6.6 x 8.6 in (15.2 x 16.8 x 21.8 cm)
Weight: 5.5 lbs (2.5 kg)
